DIGITAL DISINFECTION UNIT ZA-208F

Contact Us
Quick Inquiry

-Ziann  5th generation integral chair frame with greatly improved compensation function, beneficial to human blood circulation

-ziann dental chair is equipped with comfortable neck and waist pillow, which is combined with strong support for the patient's curve position, so that the spine is more comfortable.

-The design of the compensation chair makes the patient's whole body blood circulation flow more smoothly, lying down for a long time is not tired, relaxed and comfortable.

Share:

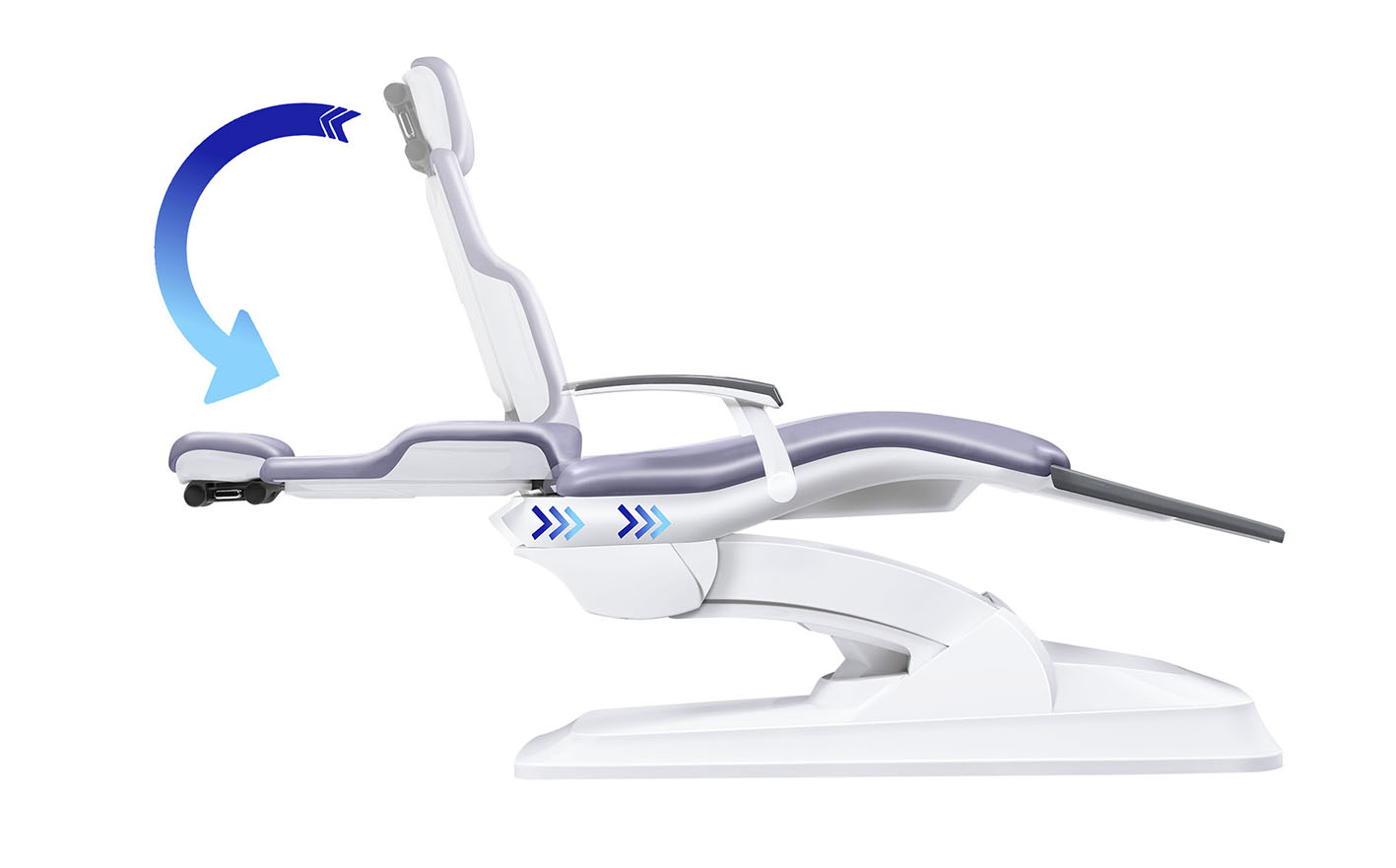

Fifth generation parallel sliding motion compensation chair frame design



German KUKA machine manual automatic assembly (accuracy up to +0.08mm)

The highest > 720mm, and the <450mm.

It only takes 9 seconds for the backrest to reach the working position







-Thickness 1.2mm

-Good rebound resilience

-Wear-resistant,breathable an aging resistant

-Ergonomics design

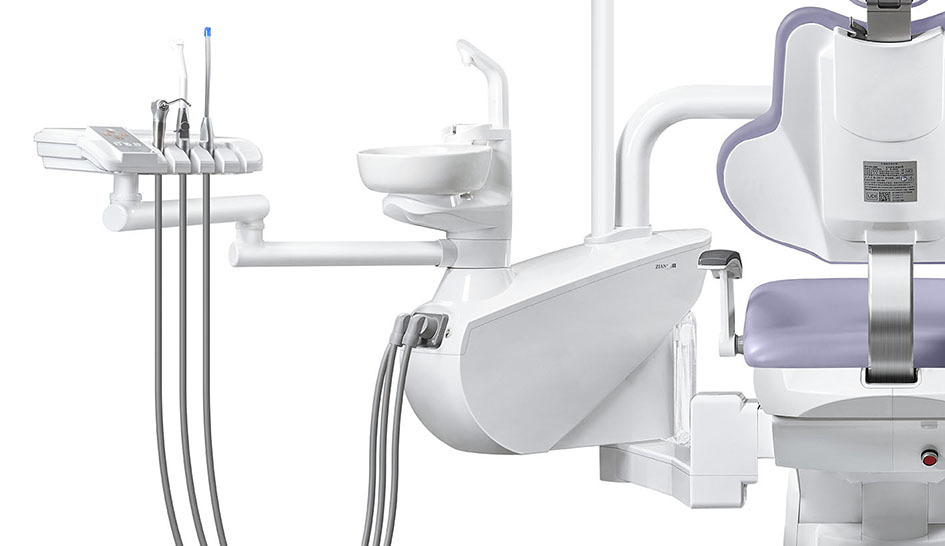

Movable side box :



-100% pure ASA material  Adopt injection molding process, It can be sealed, dust-proof, pollution-proof, easy to clean and keep clean 45 degree movable side box , opposite door is designed for easy maintenance





Detachable and Movable Spittoon:



-90 degree rotary glass ( ceramic opitonal ) spittoon

-Easy for cleaning

-deepenning the design to avoid splashing






Narrow type back of a chair:



-Backrest filled with slow rebound memory sponge, thickness Moderate, lying on your back with the comfort of being wrapped, give patients a relaxed and safe experience.

-The leather cushion on the back is tightly woven with natural protein It's woven. It's a whole leather pad.

-Special Comfortable hand feel, can effectively reduce the patient's back Friction with the seat.





Adjustable Comfort Headrest:



-The adjustable curved headrest is more comfortable than the traditional flat headrest, it’s prevents the head from shaking and can be adjusted from multiple angles.

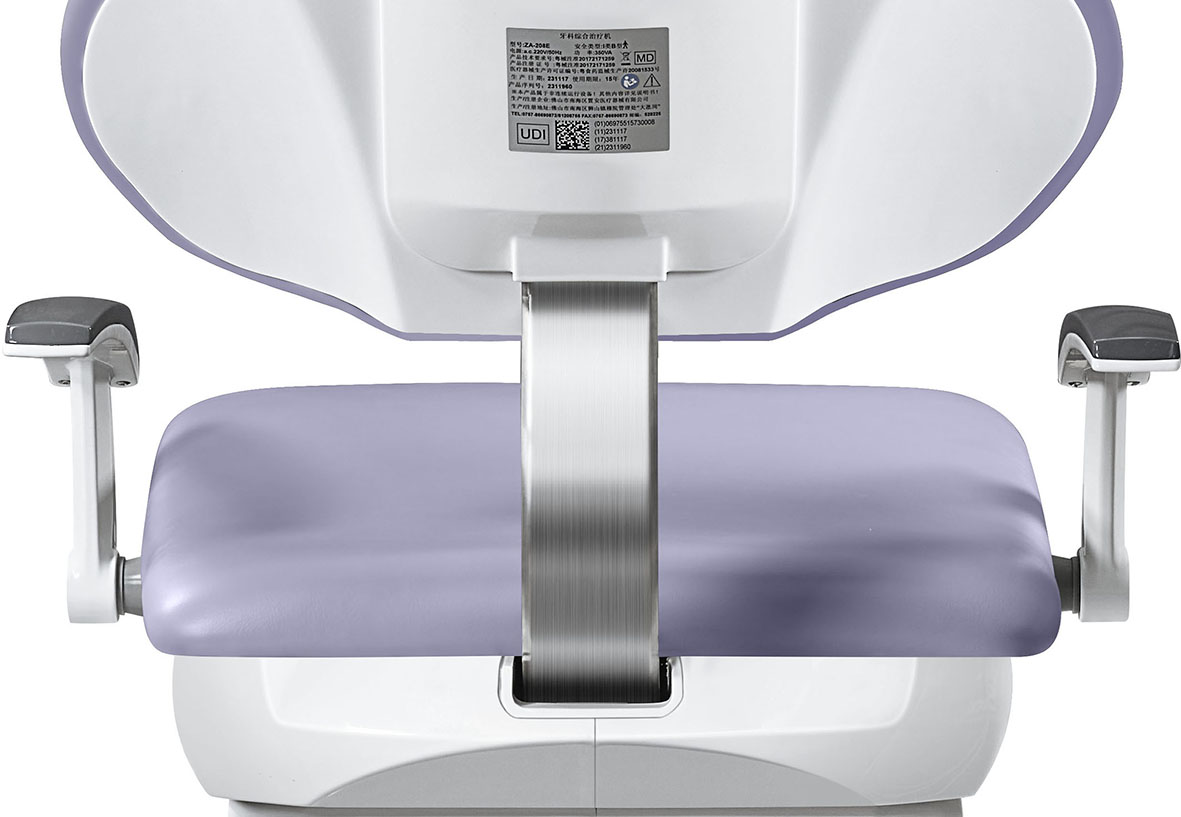

Metal backrest



-The backrest inside is made of 4mm steel which is solid and stable. The outer layer adopts electrostatic spray paint process which with strong adhesion.

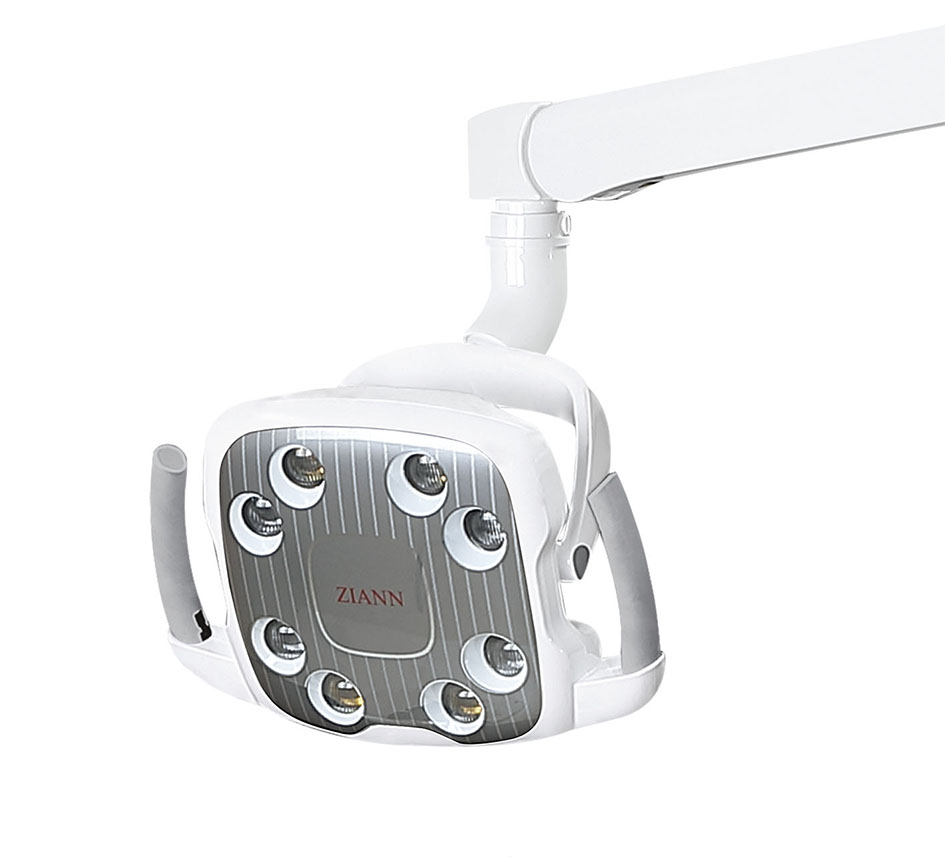

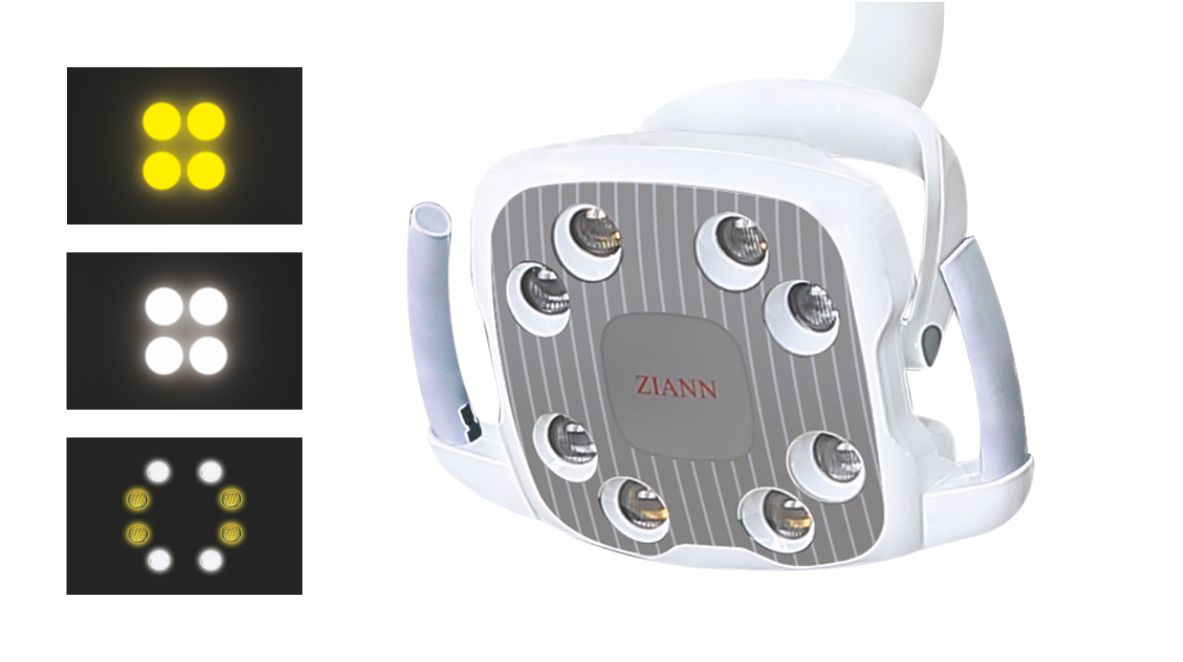

LED Operating Light



-Philips LED light source, adjustable from <8,000 to >30,000, infrared sensor switch or touch switch to control stepless dimming. It’s with manual and sensor integration, flexible  and agile movement, and easy to locate the required angle of lighting.

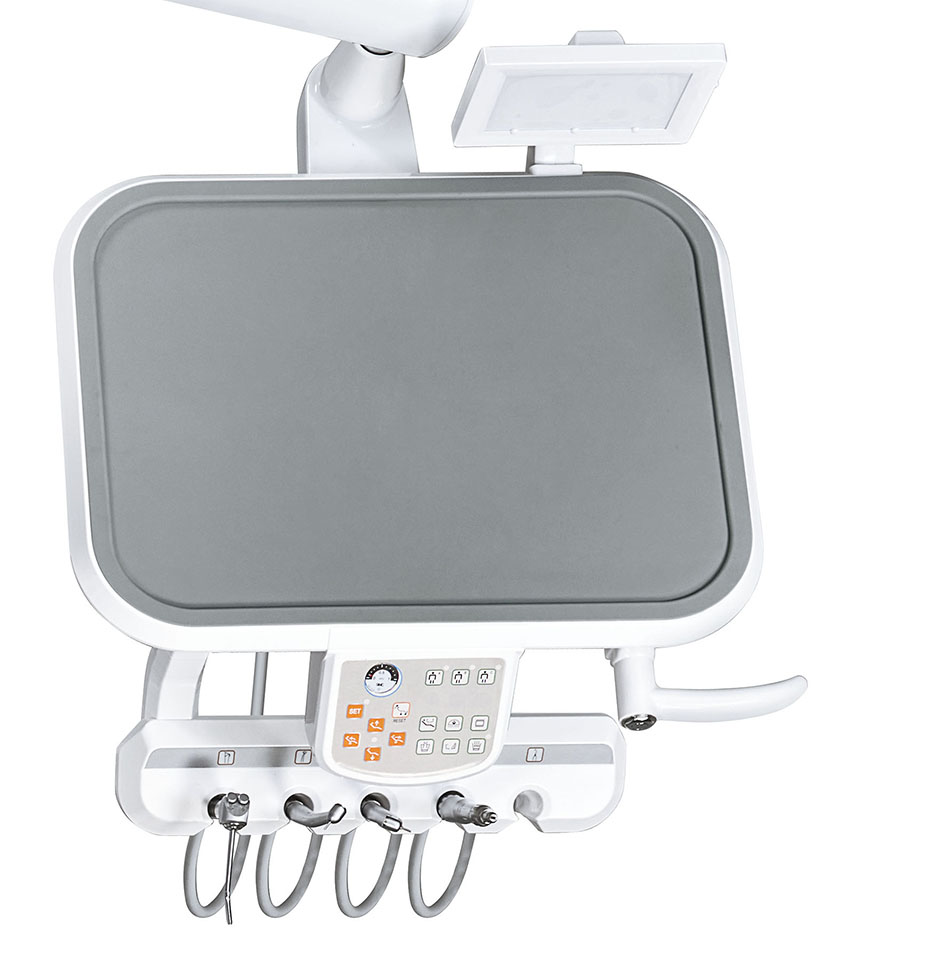

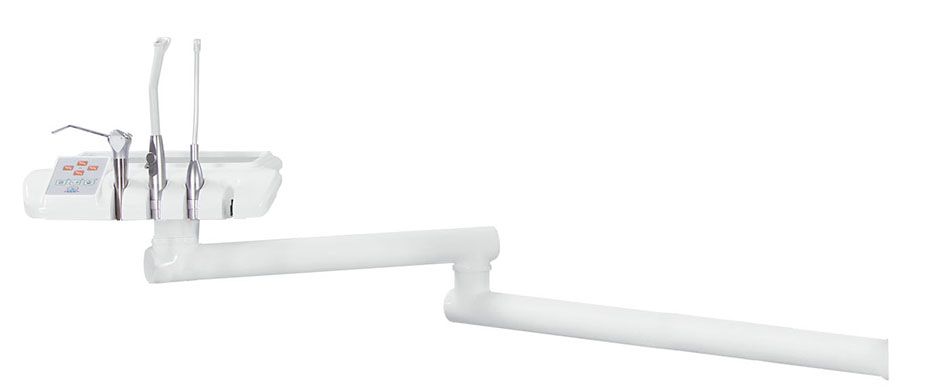

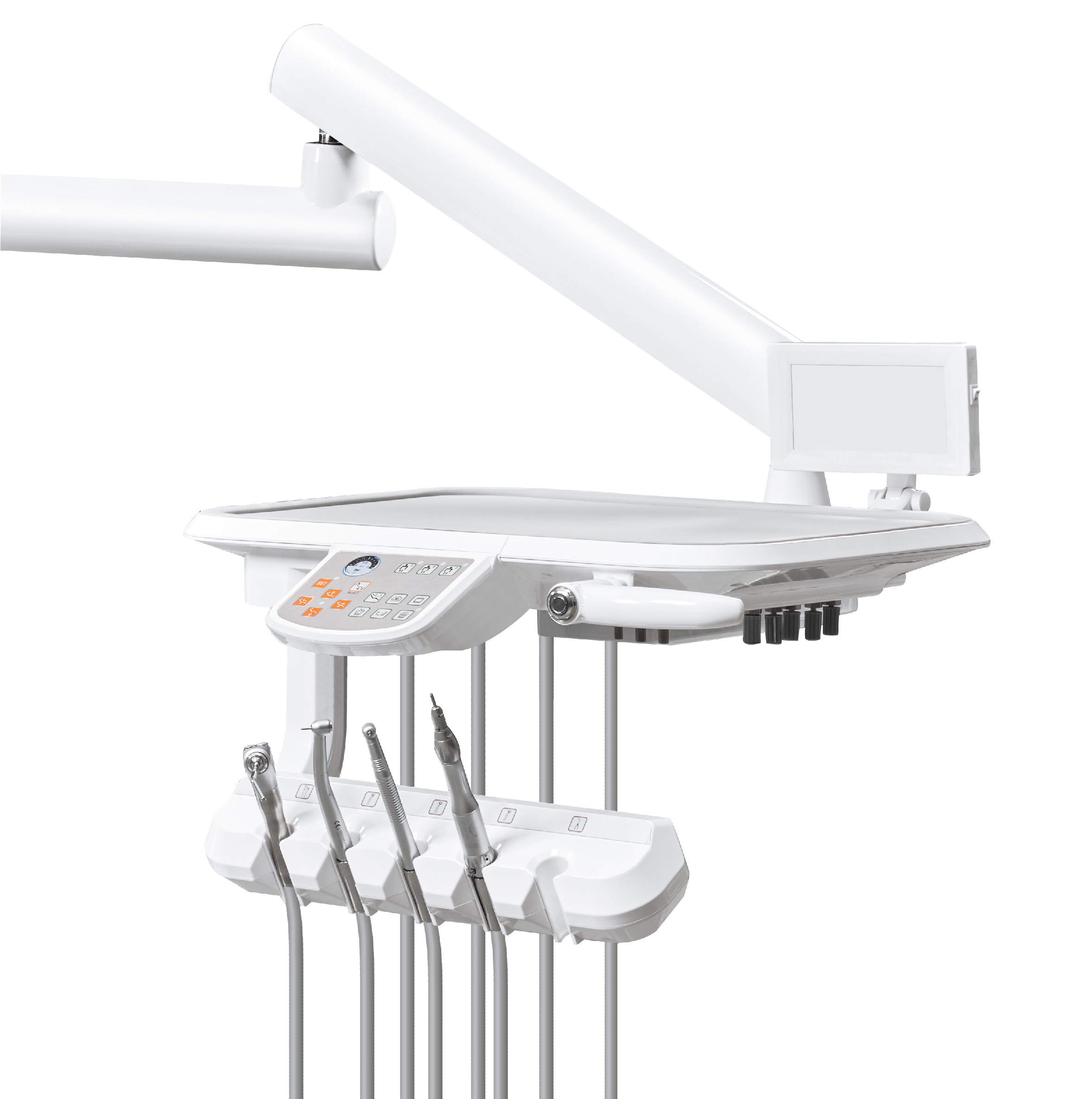

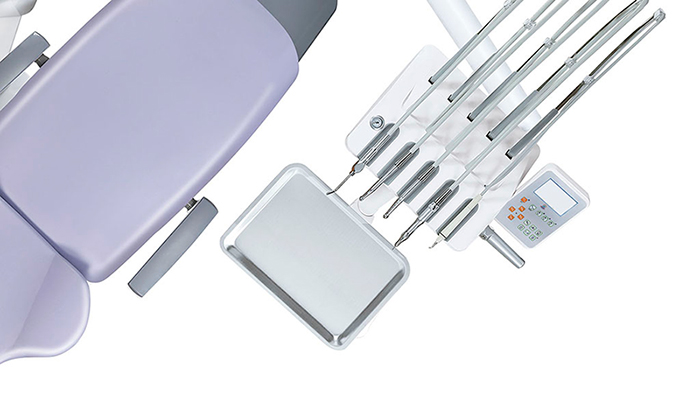

Instrument Tray:



-Three  memories

-Big size Stainless steel tray

-The bottom shell of the instrument tray is made of cast aluminum





Four hands operation assistant tray:



-With multi-functional control panel, it is convenient for assistant to use the common functions of dental chair and assist dentists to improve work efficiency.

digital desinfection unit factory





digital desinfection unit factory

Cast aluminum light arm:



-Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).





Aluminum Cabinet:



-High strength integral molding, integral casting aluminum, no rust, high hardness, durable, not easy to deformation.

digital desinfection unit factory






Rotatable Armrest



-The armrest can be rotated horizontally which is convenient for patients to lie up and down the chair.





5th genartion integral Chair Frame



- The chair frame is made of 4mm metal cutting by the laser machine. It’s with precise dimensions which is the highest standard in the dental unit industry.








Junction Box



-Enclosed power design, according to European safety standards, moisture-proof, dustproof and prevent electromagnetic interference. It’s improve the stability and durability of the prower.
-With main switch of water, electric and air, the barometer is on the top of the junction box which is convenient for observing the water and air status of the whole machine.





Multifunctional Foot Pedal:



-The pedals have self-lock function and equipped with control of rise and down, backrest forward and backward, blowing, flushing and water supply, operating lamp on/off and handpiece control.

digital desinfection unit factory

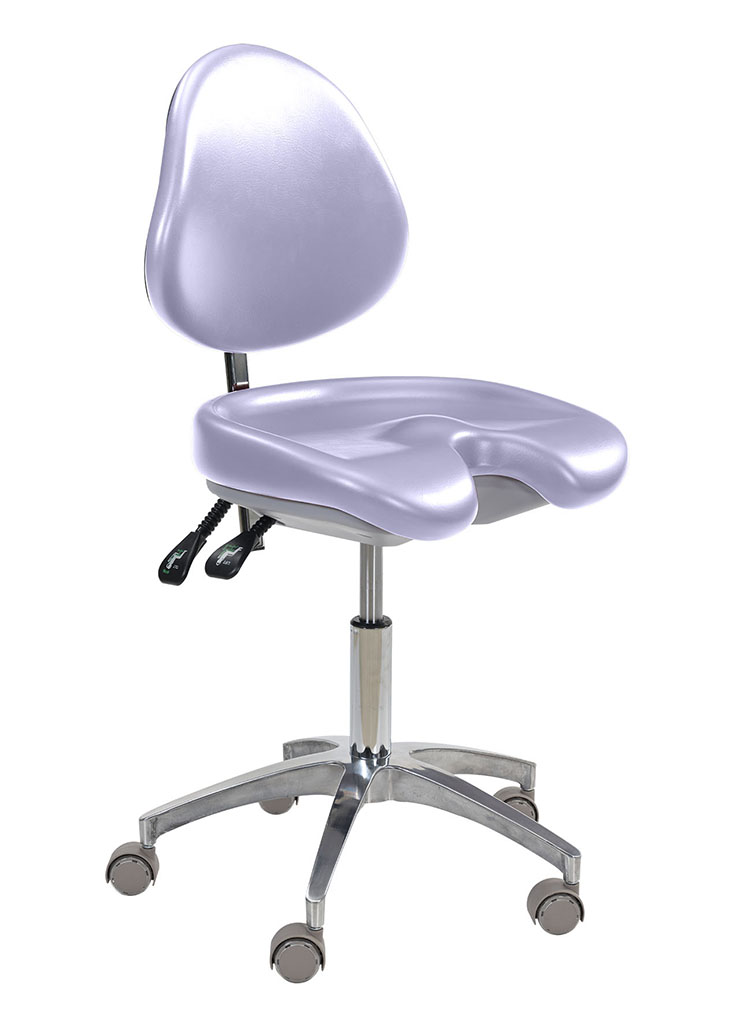

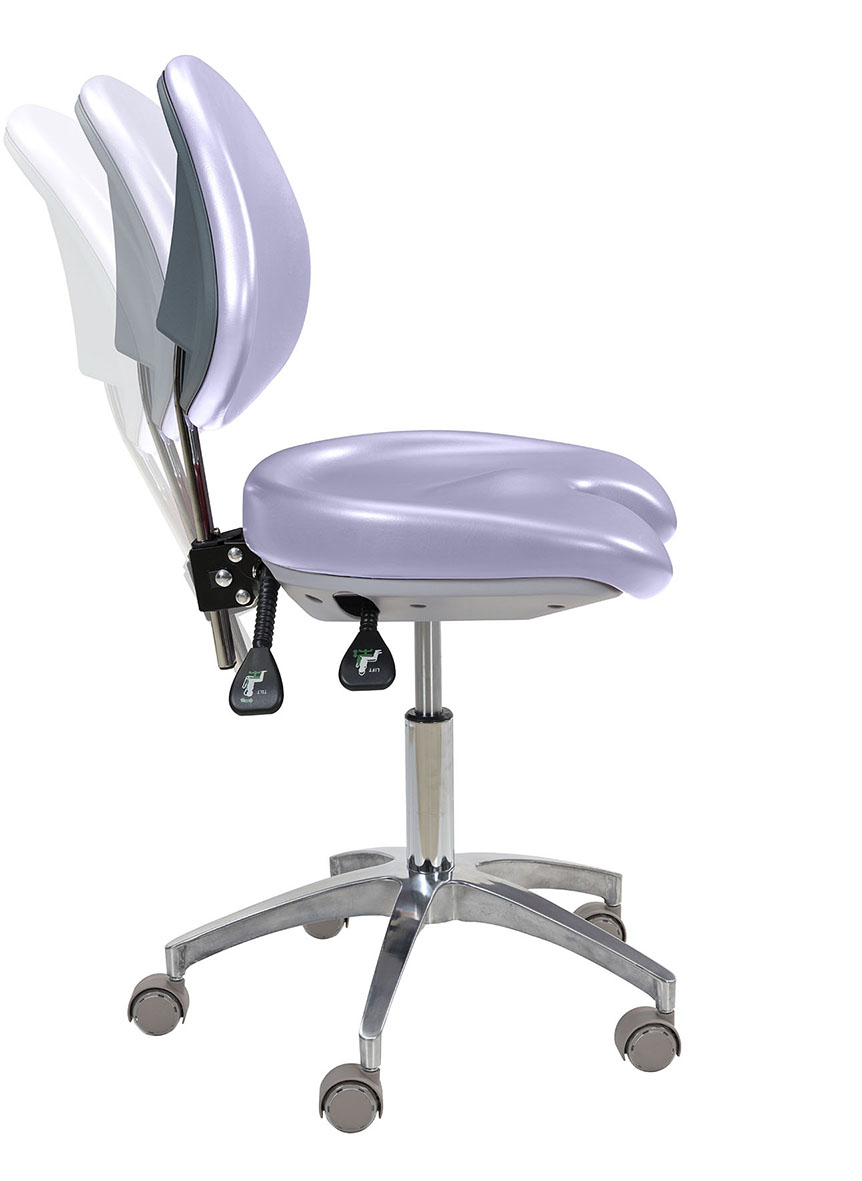

New luxry Dentist Stool E



-Dental stool E with 360°mute universal wheel which is flexible to move, cushion lifting, backrest pitching. It’s provides the dentist with good support for the haunch and waist.





Foot Pad



-The Foot pad design that the patients do not need to take off their shoes for treatment, which is convenient for cleaning.





Technical Parameters:



Power Voltage

220V-50HZ/60HZ

Motor Voltage

24V

Air Pressure

0.5MPa-0.8MPa

Water Pressure

0.2MPa-0.4MPa


LED LIGHT



Rated input voltage

AC 24V±10%

Maximum power

25VA

Light Source

 4 white light-emitting diodes (LED)

Color Temperature

5,000K - 5,700K

Illuminance

Adjustable from <8,000 to >30,000



1

24V dc motor chair

2

Down mounted instrument tray with Stainless steel pallet

3

3-way syringe(tray) cold water

4

3-way syringe(assistant) hot water

5

Main control system with 9 memories

6

Assistant operating control system

7

Water heater system

8

Strong suction tube

9

Weak suction tube

10

Movable LED film viwer

11

Water purification system

12

Air brake instrument tray

13

Emergency stop switch

14

Auto spittoon flush and cup filler control system

15

Detachable movable ceramic spittoon

16

Chair with itself lock function

17

Multi-funcitonal foot controller

18

Keypress function for spitting

19

Junction box with main switch( water, power, air)

20

LED operating light

21

Luxury dentist stool E

22

Movable cabinet

23

The 5th generation chair frame with improved compensation function

24

Luxury micro-fiber environmental leather

25

Cast aluminum cabinet frame

26

Water one-way valve ( anti-backflow function)

27

Standard disinfection system

28

Ziann Digital integrated system
