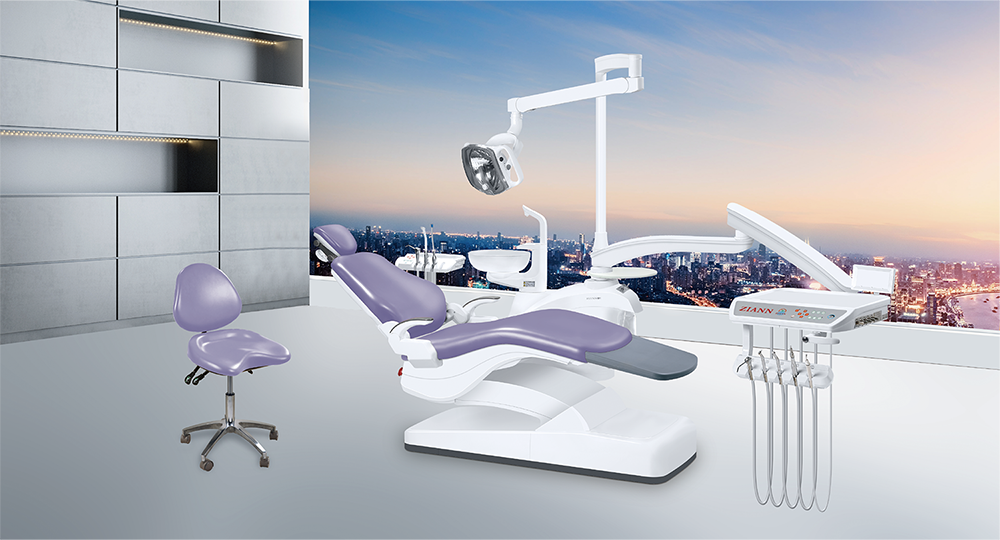

DENTAL UNIT ZA-208Q3

Contact Us
Quick Inquiry

-The fourth generation compensation chair frame design

-Ergonomic design, compensation effect can make the whole body blood circulation smooth, improve the comfort of patients after lying down for a long time .

-Safety emergency stop switch high quality motor, solenoid valve 45 degree rotation cabinet with cast aluminum frame imported water pipe

Share:




-The fourth generation compensation chair frame design

-Ergonomic design ,compensation effect can make the whole body blood circulation smooth ,improve the comfort of patients after lying down for a long time .

-Safety emergency stop switch high quality motor ,solenoid valve 45degree rotation cabinet with cast aluminum frame imported water pipe



dental chair unit

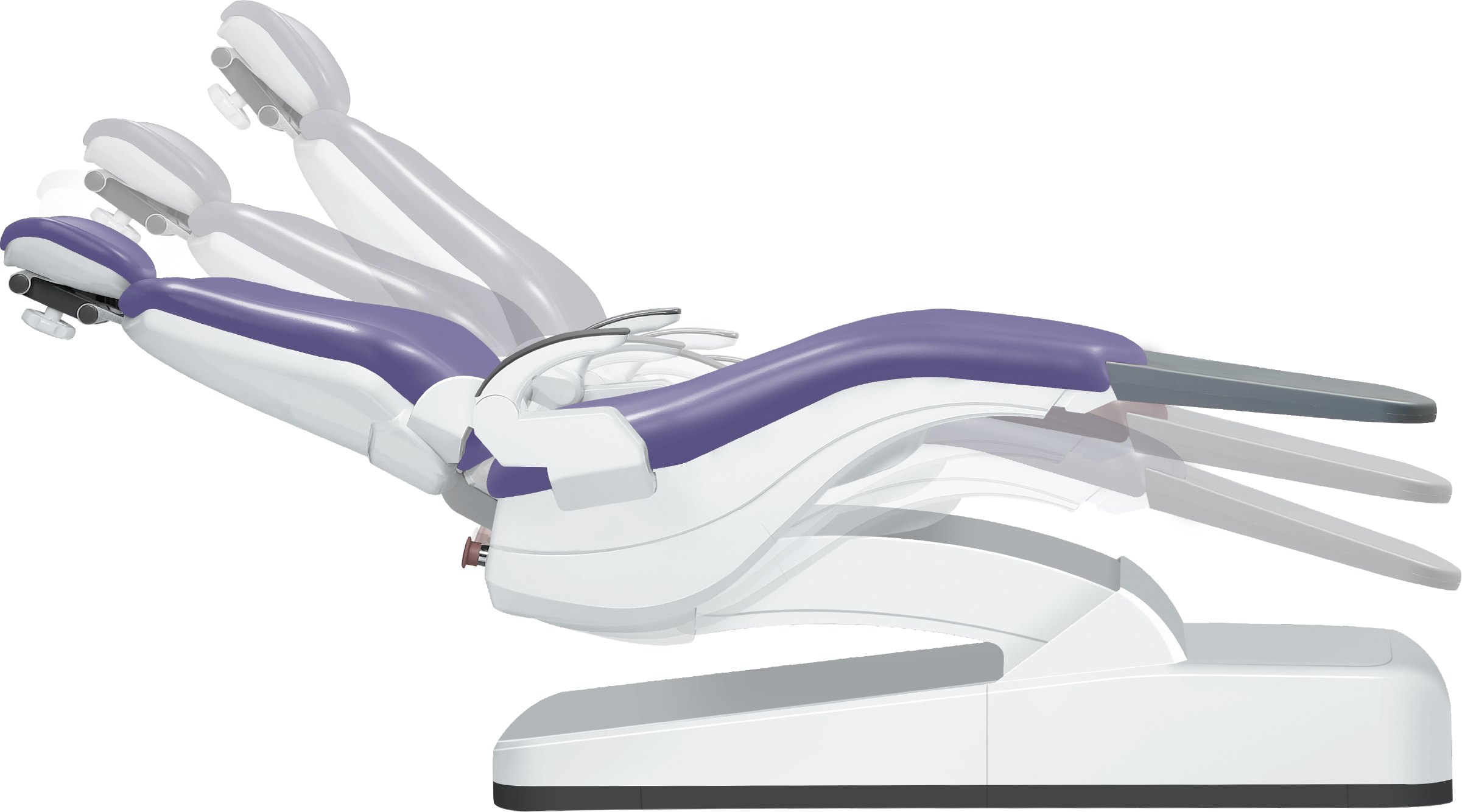

Third generation compensation chair design



-German KUKA machine manual automatic assembly (accuracy up to +0.08mm)

-The highest > 720mm, and the <450mm.

-It only takes 9 seconds for the backrest to reach the working position





dental chair unitdental chair unitdental chair unit

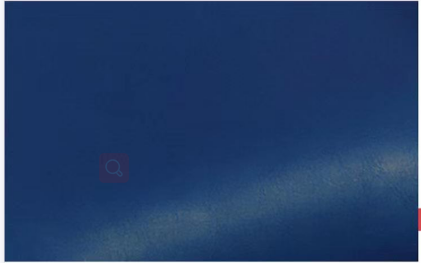

Seamless Poly Urethane



-Seamless pu, easy for clean and disinfection, water proof and durable

-The cushion is soft and comfortable with good resiliencen







Dental Unit Factory

Movable side box :



-45 degreee movable side box, Adopt injection molding process, The opposite door is designed for easy maintenance





Detachable and Movable Spittoon:



-90 degree rotary glass ( ceramic opitonal ) spittoon

-Easy for cleaning

-deepenning the design to avoid splashing

Dental Unit Factory





dental unit manufacturers in china

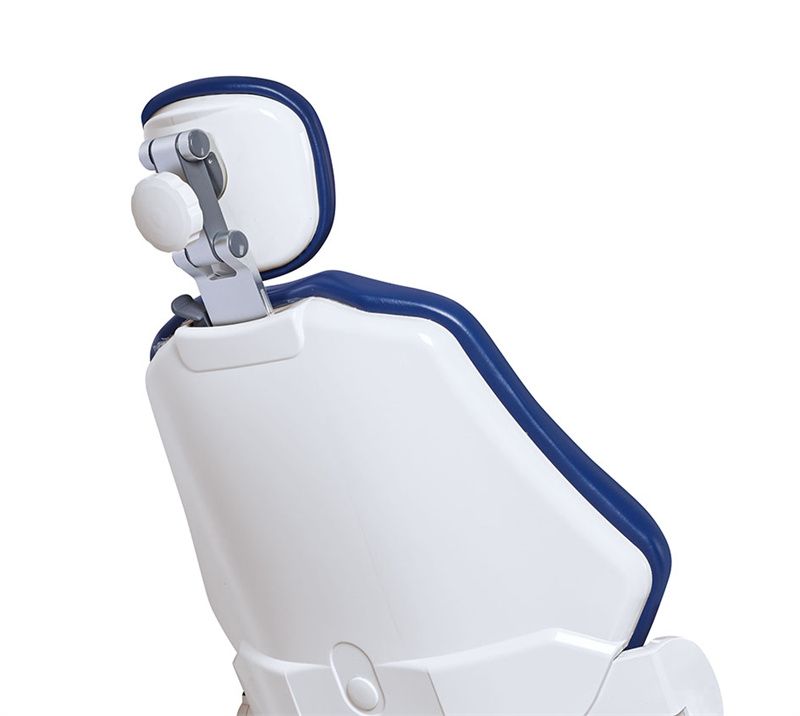

Narrow type back of a chair:



-Backrest filled with slow rebound memory sponge, thickness Moderate, lying on your back with the comfort of being wrapped, Give patients a relaxed and safe experience.

-The leather cushion on the back is tightly woven with natural protein It's woven. It's a whole leather pad.

-Special Comfortable hand feel, can effectively reduce the patient's back Friction with the seat.





Adjustable Comfort Headrest:



-The adjustable curved headrest is more comfortable than the traditional flat headrest, it’s prevents the head from shaking and can be adjusted from multiple angles.






dental unit manufacturers in china

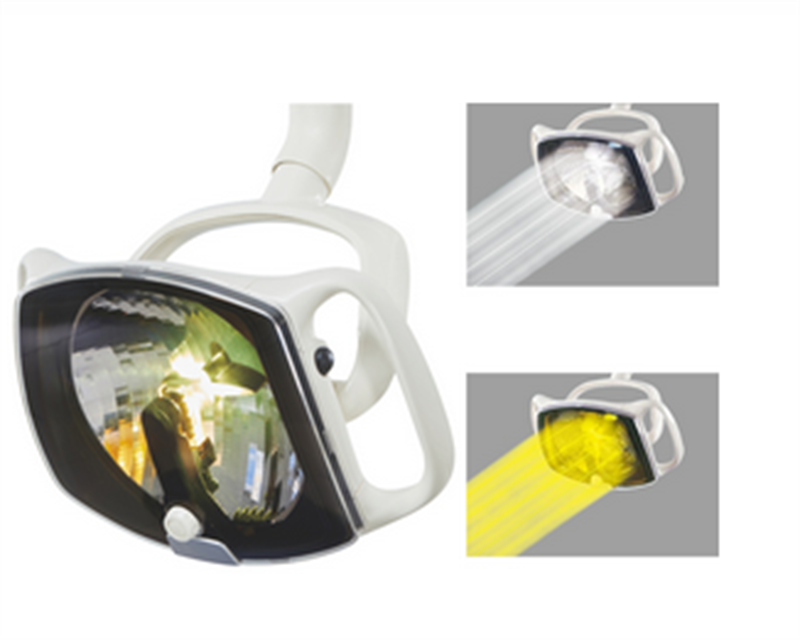

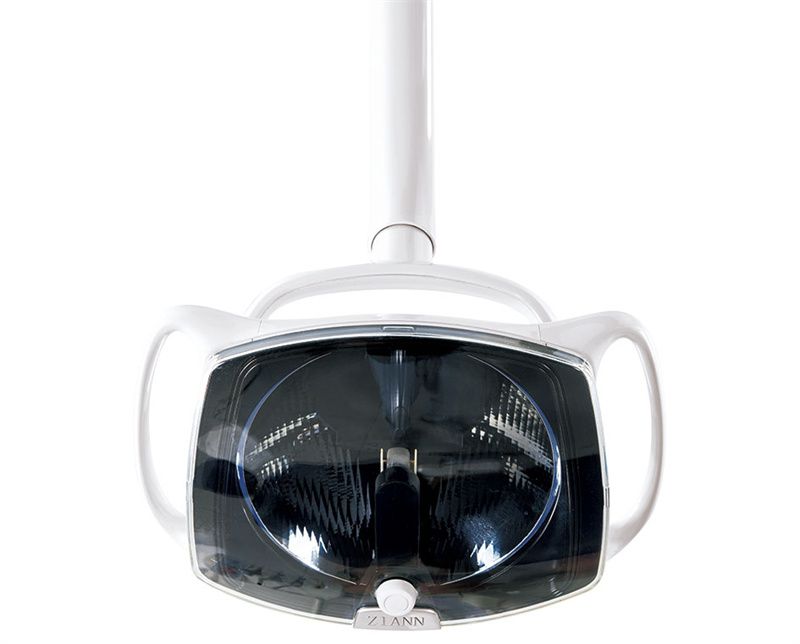

LED Operating Light



-Philips LED light source, adjustable from <8,000 to >30,000, infrared sensor switch or touch switch to control stepless dimming. It’s with manual and sensor integration, flexible  and agile movement, and easy to locate the required angle of lighting.





Instrument Tray:



-The 12-key  big operation panel  with air pressure , big size can put more instruments ,   hanpiece holder can move 90degree , The bottom shell of the instrument tray is made of cast aluminum which is more solid and stable.

dental unit manufacturers in china





dental unit manufacturers in china

Four hands operation assistant tray:



-With multi-functional control panel, it is convenient for assistant to use the common functions of dental chair and assist dentists to improve work efficiency.





Cast aluminum light arm:



-Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).

dental unit manufacturers in china





dental chair unit specifications

Aluminum Cabinet:



-High strength integral molding, integral casting aluminum, no rust, high hardness, durable, not easy to deformation.





Rotatable Armrest:



-The armrest can be rotated horizontally which is convenient for patients to lie up and down the chair.

dental chair unit specifications





dental chair unit specifications

Junction Box



-Enclosed power design, according to European safety standards, moisture-proof, dustproof and prevent electromagnetic interference. It’s improve the stability and durability of the prower.
-With main switch of water, electric and air, the barometer is on the top of the junction box which is convenient for observing the water and air status of the whole machine.





Multifunctional Foot Pedal:



-The pedals have self-lock function and equipped with control of rise and down, backrest forward and backward, blowing, flushing and water supply, operating lamp on/off and handpiece control.

dental chair unit specifications





dental chair unit specifications

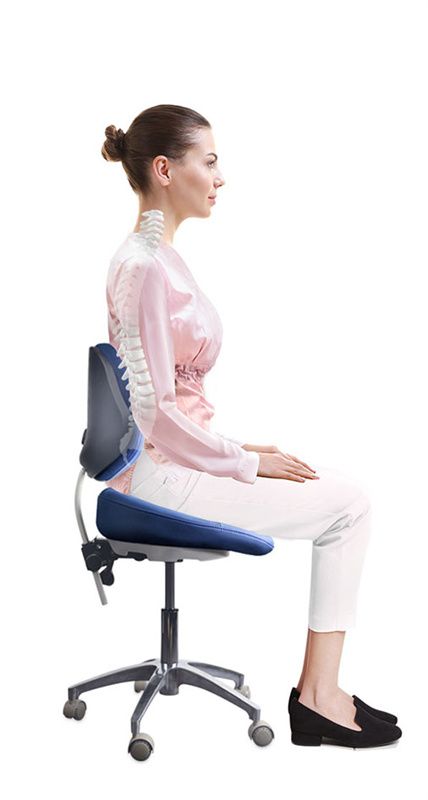

Dentist Stool E



-Dental stool E with 360°mute universal wheel which is flexible to move, cushion lifting, backrest pitching. It’s provides the dentist with good support for the haunch and waist.





Foot Pad



-The Foot pad design that the patients do not need to take off their shoes for treatment, which is convenient for cleaning.

dental chair unit specifications

Technical Parameters:



Power Voltage

220V-50HZ/60HZ

Motor Voltage

24V

Air Pressure

0.5MPa-0.8MPa

Water Pressure

0.2MPa-0.4MPa


LED LIGHT



Rated input voltage

AC 24V±10%

Maximum power

25VA

Light Source

 4 white light-emitting diodes (LED)

Color Temperature

5,000K - 5,700K

Illuminance

Adjustable from <8,000 to >30,000



1

24V dc motor chair

2

Down mounted instrument tray

3

3-way syringe(tray) cold water

4

3-way syringe(assistant) hot water

5

Main control system

6

Assistant operating control system

7

Water heater system

8

Strong suction tube

9

Weak suction tube

10

Movable LED film viwer

11

Water purfication system

12

Air brake instrument tray

13

Emergency stop switch

14

Protective mat of instrument tray

15

Auto spittoon flush and cup filler control system

16

Detachable movable glass spittoon

17

Chair with iself lock function

18

Multi-funcitonal foot controller

19

Keypress function for spitting

20

Injection box with main switch( water, power, air)

21

LED operating light

22

Luxury dentist stool E

23

Plastic plate

24

Movable cabinet

25

The 4th generation chair frame with improved compensation function

26

Seamless PU cushion

27

Cast aluminum cabinet frame

28

Water one-way valve ( anti-backflow function)
