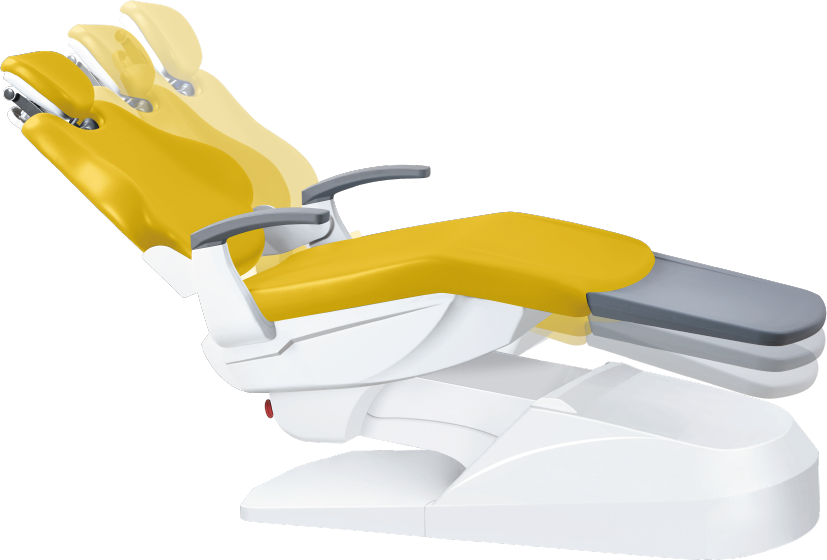

Third generation compensation chair design



-German KUKA machine manual automatic assembly (accuracy up to +0.08mm)

-The highest > 720mm, and the <450mm.

-It only takes 9 seconds for the backrest to reach the working position







Ziann  3rd genaration integral chair frame with greatly improved compensation function, beneficial to human blood circulation



ziann dental chari is equipped with comfortable neck and waist pillow, which is combined with strong support for the patient's curve position, so that the spine is more comfortable.

The design of the compensation chair makes the patient's whole body blood circulation flow more smoothly, lying down for a long time is not tired, relaxed and comfortable.





Movable side box:



-45 degreee movable side box , Adopt injection molding process, The opposite door is designed for easy maintenance

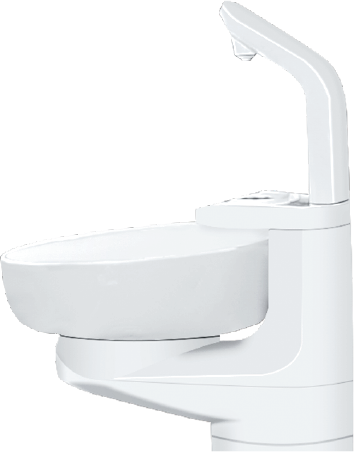

Detachable and Movable Spittoon:



-90 degree rotary glass ( ceramic opitonal ) spittoon

-Easy for cleaning

-deepenning the design to avoid splashing







Narrow type back of a chair:



-Backrest filled with slow rebound memory sponge, thickness Moderate, lying on your back with the comfort of being wrapped, Give patients a relaxed and safe experience.

-The leather cushion on the back is tightly woven with natural protein It's woven. It's a whole leather pad.

-Special Comfortable hand feel, can effectively reduce the patient's back Friction with the seat.





Adjustable Comfort Headrest:



-The adjustable curved headrest is more comfortable than the traditional flat headrest, it’s prevents the head from shaking and can be adjusted from multiple angles.







Metal backrest:



-The backrest inside is made of 4mm steel which is solid and stable. The outer layer adopts electrostatic spray paint process which with strong adhesion.

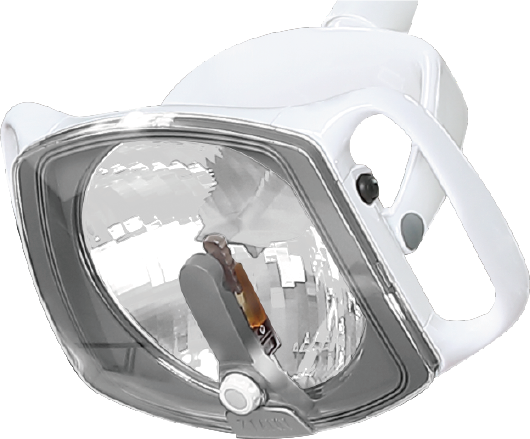

LED Operating Light:



-Philips LED light source, adjustable from ＜8,000 to ＞30,000, infrared sensor switch or touch switch to control stepless dimming. It’s with manual and sensor integration, flexible  and agile movement, and easy to locate the required angle of lighting.

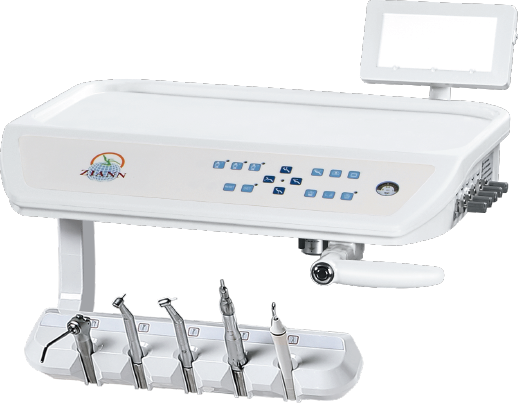

Instrument Tray:



-The 18-key operation panel has nine memory positions, and the lcd display controls the running state of the chair at any time..

-The bottom shell of the instrument tray is made of cast aluminum which is more solid and stable. There are 9 memories and barometer in front, it is convenient to watch the air pressure of handpiece tube at any time.





Four hands operation assistant tray:



-With multi-functional control panel, it is convenient for assistant to use the common functions of dental chair and assist dentists to improve work efficiency.





Cast aluminum lamp holder:



-Cast aluminum lamp holder, high flexibility, long service life (after 100,000 fatigue tests).





Aluminum Cabinet:



-High strength integral molding, integral casting aluminum, no rust, high hardness, durable, not easy to deformation.





Rotatable Armrest:



-The armrest can be rotated horizontally which is convenient for patients to lie up and down the chair.





3rd genartion integral Chair Frame:



-The chair frame is made of 4mm metal cutting by the laser machine. It’s with precise dimensions which is the highest standard in the dental unit industry.









Junction Box:



-Enclosed power design, according to European safety standards, moisture-proof, dustproof and prevent electromagnetic interference. It’s improve the stability and durability of the prower. With main switch of water, electric and air, the barometer is on the top of the junction box which is convenient for observing the water and air status of the whole machine.

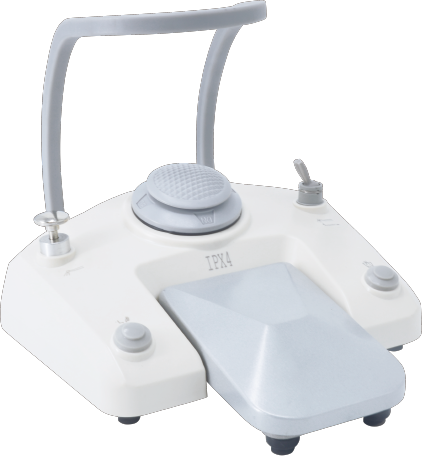

Multifunctional Foot Pedal:



-The pedals have self-lock function and equipped with control of rise and down, backrest forward and backward, blowing, flushing and water supply, operating lamp on/off and handpiece control.





Dentist Stool C:



-Dental stool C with 360°mute universal wheel which is flexible to move, cushion lifting, backrest pitching. It’s provides the dentist with good support for the haunch and waist.





MFoot Pad:



-The Foot pad design that the patients do not need to take off their shoes for treatment, which is convenient for cleaning.
